Subject : 90_Non Flammable EsterQuat for Fabric Softener
Date : 2016-10-01
September 2016, Newsletter no.90
Published by Sung-Ho Lee


   Non Flammable EQ for Fabric Softener
   New in 2016


  Have you faced
Accident & Strict
Regulation
due to Flammable Goods?





   Tianjin explosion in 2015

  Tianjin explosion: china sets final death
toll at 173, ending search for survivors



http://www.theguardian.com/world/2015/sep/12/tianjin-explosion-china-sets-final-death-toll-at-173-ending-search-for-survivors

Chinese authorities ended the search for the remaining eight missing in a massive chemical warehouse explosion last month, setting the final death toll at 173 in China’s worst industrial disaster in years.

Investigations into the 12 August blasts at the Ruihai International Logistics warehouses showed they were located closer to homes than permitted, and stored much more hazardous material than authorised, including 700 tonnes of highly toxic sodium cyanide.

A series of massive explosions late at night shattered windows and tore facades off buildings for miles around, while launching debris including heavy steel storage canisters into nearby communities with the force of an artillery shell. Homeowners have held protests demanding the government buy back their apartments, saying they are unliveable.

Also detained as part of the investigation are 11 government officials, while the head of the government body in charge of industrial safety, Yang Dongliang, has been placed under investigation for corruption.
Yang had previously worked for 18 years in Tianjin in state industry and local government, rising to executive vice mayor.
Authorities say they have sealed all waterways leading out of the blast zone to curb cyanide contamination as teams in hazmat suits clean up hazardous debris.





   International Maritime Organization enforce IMDG Cord compliance


  http://www.komdi.or.kr/ebook/IMDGCode소개/WEB/IMDGCode소개.html







   Flammable vs. Non Flammable(From EQ maker to Container Loading)


  Packaging   Inspection   Container
Loading



Certified drum only
Open head plastic drum
  not allowed
Used drum not allowed
Hazard pictogram should
  be properly attached

Expert Inspection mandatory
If rejected, rescheduling at
  least 1 week

FCL only
LCL cargo not allowed
* FCL: Full Container Load
** LCL: Less then Container Load



Various Packages available
including Open head PE drum
Used drum(2nd hand drum) OK
Inspection not required
FCL OK
LCL OKK




   Flammable vs. Non Flammable(From Shipping To Customer)



  Ocean
Shipping
  Landing @CY   Storage & usager


Inland trucking more expensive
Limited shipping schedule
Limited shipping route

Dangerous Goods, limited
  CY(container yard) space
Inland trucking to customer
  site more costly due to han
  dling of dangerous goods

Strict facility & factory
  regulation


Inland trucking less expensive
More flexible shipping schedule
More flexible shipping route
More spacious CY
Safer to use
Less regulation







   TPG & Glycerin based Non Flammable EQ


TPG
  Chemical Name: Tripropylene Glycol
  Formula: C9H20O4
  Cas No.: 24800-44-0
  Molecular Weight: 192.3 g/mol
  Boiling Point: 265.1℃
Patent Pending EsterQuat

     Glycerin
  Chemical Name: Glyceriol
  Formula: C3H8O3
  Cas No.: 56-81-5
  Molecular Weight: 92.09 g/mol
  Boiling Point: 290℃
Non Petroleum based solvent





   Non-Flammable EQ

  Eco Friendly

    Grade
ECO & Non Flammable
      SUNQAT-CEQ90GL
      SUNQAT-CEQ2X-85GL
      SUNQAT-CTN90GL

Cold & Non Flammable
      SUNQAT-CEQ90TPG
      SUNQAT-CEQ2X-90TPG
      SUNQAT-CTN90TPG
 Solid(%)

     90±1
     85±1
     90±1


     90±1
     90±1
     90±1
  Solvent

GL
GL
GL


GL
GL
GL
Melting
Point

28℃
33℃
26℃


20℃
26℃
17℃
Alkyl Group

Palm
Palm
Cotton


Palm
Palm
Cotton
NF

v
v
v


v
v
v
ECO

v
v
v





Remark COLD






v
v
v
NE



v




v
Price

3
2
4


4
3
5

  Non Flammable Non Edible Source
  Cold Processable



Moreover, GL & TPG based EQ have very
unique qualities
  Improved Color Stability
  Better Water Dispersibility





   Improved Color Stability



Tested Recipe
- Water  81.7%
- EQ       18.0%
- CaCl2   0.3%
- Dye      q.s

Test Condition
- at 25℃
- under the sunlight
- 1 week
CEQ90TPG

CEQ90GL

TE90

Company “E”

Company “K”







   Better Water Dispersibility


Tested sample
- CTN90GL
- TE90
- Company ”E”
- Company ”K”

Test Condition
- Water 95%
- EQ      5%

SUNJIN suggests below test procedure for water-dispersibility

1) Heating to EQ(40℃)
2) Heating to D.I Water (10℃,18℃, 25℃ 40℃)
3) Input EQ in each temperature water
4) Stirring (500rpm, Keep the temperature of D.I water)
    - Stirring Time: 10min & 20min & 30min & 60min
5) Filter the solution by 200 mesh
6) Check whether lump appear on the mesh or not.



  If you see lump on the
sieve, the water

dispersibility is no good

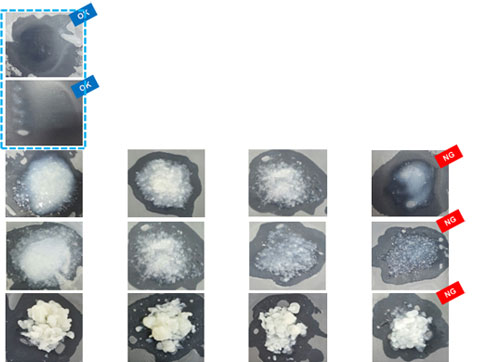

   Water Dispersibility at 18℃


10min 20min 30min 60min

  CEQ90TPG
  CEQ90GL
  TE90
  Company “E”
  Company “K”

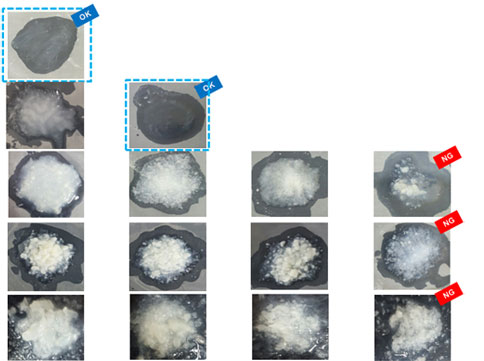

   Water Dispersibility at 25℃


10min 20min 30min 60min

  CEQ90TPG
  CEQ90GL
  TE90
  Company “E”
  Company “K”

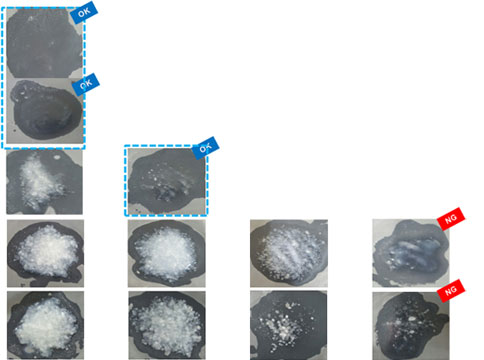

   Water Dispersibility at 40℃


10min 20min 30min 60min

  CEQ90TPG
  CEQ90GL
  TE90
  Company “E”
  Company “K”
